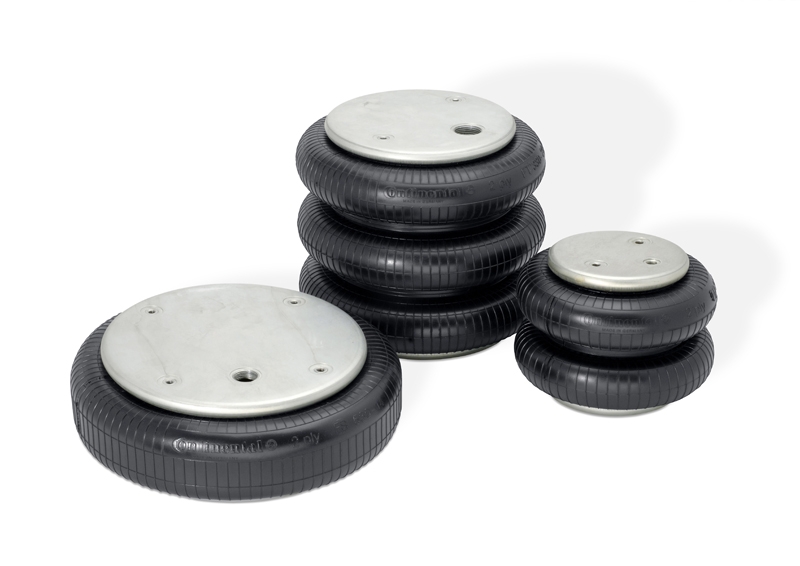

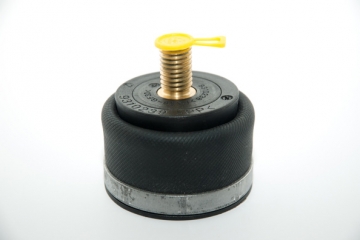

Air Springs

Air Springs

Pneumatic actuators have become increasingly important in the industry worldwide replacing springs and other balance or vibration equipment in various industrial applications. See reference tables below.










Specifications Tables









reference Mechanical Specifications specifications Pneumatic Vibration Reduction
Maximum Travel [mm] Força em p = 8 bar
Minimum Mounting Height [mm] Maximum diameter[mm] Required Installation Space [mm] Minimum Height [kN] Travel East [mm] Maximum Travel [mm] Height Recommended Service [mm] Maximum Load for Height is Recommended Service in 8 bar [kN] Frequency for Height Recommended Service at 8 bar [kN]
FS 22-3 50 80 95 20 3.3 2.3 1.5 60 2.3 4.1
FS 40-6 50 145 160 60 7.4 5.3 2.0 90 4.4 3.2
FS 50-5 51 150 165 44 9.0 5.4 2.2 75 6.1 3.6
FS 70-7 51 165 180 64 9.9 7.5 5.2 90 7.5 2.7
FS 70-9 51 200 215 99 12.8 9.6 1.9 115 7.7 2.6
FS 120-9 50 215 230 85 17.7 12.4 6.6 110 10.9 2.6
FS 120-10 51 231 245 99 19.5 15 4.6 115 13.3 2.5
FS 120-12 51 235 250 119 18.7 15.9 7.2 140 12.3 2.3
FS 138-8 50 230 245 80 24.5 17.5 7.5 100 13.9 2.4
FS 200-10 51 250 265 89 23.8 17.5 9.1 110 15.7 2.6
FS 330-11 51 325 340 99 43.9 36.7 22.4 130 29 2.3
FS 330-14 51 343 360 129 47.3 37.8 13 140 31.4 2.2
FS 530-11 51 385 400 124 68.4 53 20.8 145 42.2 2.3
FS 530-14 51 405 420 134 69.6 60.2 35.2 150 50.8 2
FS 960-12 51 442 480 124 104.0 78.3 31.3** 125 76.1 2.1
FS 1330-11 51 530 570 114 142.4 119 66.1 125 107.6 2.2
FS 1710.12 51 580 620 126 182.5 147.2 61.4** 125 145.7 2.1
FS 2870-16 51 715 760 164 298.0 238 81** 150 224.9 1.8
FS 5450 – 16 64 950 1000 151 520.1 437.9 200.8** 140 437.9 1.9
reference Mechanical Specifications specifications Pneumatic Vibration Reduction
Maximum Travel [mm] Força em p = 8 bar
Minimum Mounting Height [mm] Maximum diameter[mm] Required Installation Space [mm] Minimum Height [kN] Travel East [mm] Maximum Travel [mm] Height Recommended Service [mm] Maximum Load for Height is Recommended Service in 8 bar [kN] Frequency for Height Recommended Service at 8 bar [kN]
FD 40-10 70 145 160 100 7.4 5.5 2.5 160 3.2 2.7
FD 70-13 72 165 180 128 11.6 7.8 2.6 175 5.2 2.4
FD 110-15 72 203 215 156 16.5 10.5 2.9 175 2.9 2.1
FD 120-17 75 215 230 155 18 13.1 6.3 190 10.6 2
FD 120-20 77 218 235 193 19.6 14.4 6.6 205 12.6 1.7
FD 138-18 75 225 245 175 24.7 12.1 5.8** 200 12.1 1.9
FD 200-19 75 250 265 200 26.1 18.3 5.7 210 14.5 1.9
FD 200-22 77 255 265 218 26.2 17.6 7 220 16.5 1.6
FD 200-25 77 260 275 248 25.4 18.8 8.2 254 16.5 1.7
FD 210-22 75 270 300 225 35 23 9 220 19.4 1.7
FD 330-22 75 325 340 230 46.4 34.4 14.3 240 27.6 1.7
FD 330-30* 77 340 355 283 49 39.6 13.7 – – –
FD 412-18 75 330 350 225 51 35.5 12 220 30 1.8
FD 530-22 77 385 400 233 65.5 52.9 21.8 250 42 1.7
FD 530-30 77 400 415 273 71.2 56.4 21.6 260 48.2 1.5
FD 530-35 77 405 420 313 74.8 57.9 21*** 285 51 1.4
FD 960-22 84 444 490 226 106.3 84.1 21.8** 240 71.4 1.6
FD 1120-30* 90 500 540 315 120 89.3 22** – – –
FD 1330-25 84 518 570 246 144.2 144 42.7** 240 103.9 1.5
FD 1710-25 84 577 620 251 185.4 137.6 48.0** 240 137.6 1.5
FD 1730-40* 100 610 650 400 161.6 134.01 54.1 – – –
FD 2380-24 84 660 710 231 241.3 202.8 80.3** 240 184 1.5
FD 2470-40* 100 710 750 400 246 209.2 117 – – –
FD 2870-30 84 709 760 271 276.6 232 87.8** 265 218.3 1.4
FD 5450-28 107 950 1000 283 515.5 410.7 206.0** 280 410.7 1.3
reference Mechanical Specifications specifications Pneumatic Vibration Reduction
Maximum Travel [mm] Força em p = 8 bar
Minimum Mounting Height [mm] Maximum diameter[mm] Required Installation Space [mm] Minimum Height [kN] Travel East [mm] Maximum Travel [mm] Height Recommended Service [mm] Maximum Load for Height is Recommended Service in 8 bar [kN] Frequency for Height Recommended Service at 8 bar [kN]
FT 210-32* 100 270 300 330 36 21 7.6 – – –
FT 330-29* 110 325 345 320 46.4 33.7 17.8 – – –
FT 412-32* 100 325 350 330 53.4 34.1 14.8 – – –
FT 530.32* 110 384 410 325 69.3 54.6 24.7 – – –
FT 960-34 114 462 510 336 109 77.2 29.5** 330 73.9 1.3
FT 1330-35* 114 521 570 356 148.7 115.6 38** – – –
FT 1710-38* 114 580 630 356 187.5 149.1 61.8** – – –
FT 2870-45* 115 720 770 455 289 231 46.2** – – –
FT 5450-44* 140 950 1000 440 526.7 448 218.1** – – –
reference Mechanical Specifications specifications Pneumatic Vibration Reduction
Maximum Travel [mm] Força em p = 8 bar
Minimum Mounting Height [mm] Maximum diameter[mm] Required Installation Space [mm] Minimum Height [kN] Travel East [mm] Maximum Travel [mm] Height Recommended Service [mm] Maximum Load for Height is Recommended Service in 8 bar [kN] Frequency for Height Recommended Service at 8 bar [kN]
LG 1320-8 270 510 550 80 102.0 104 104 300 104 1.5
LG 2050-8 270 610 680 80 162 165 166 300 165 1.3
LG 3050-10 270 720 750 100 236 244 248 300 244 1.3
LG 4080-8 270 845 900 80 317 332 343 300 329 1.4
reference Mechanical Specifications specifications Pneumatic Vibration Reduction
Maximum Travel [mm] Força em p = 8 bar
Minimum Mounting Height [mm] Maximum diameter[mm] Required Installation Space [mm] Minimum Height [kN] Travel East [mm] Maximum Travel [mm] Height Recommended Service [mm] Maximum Load for Height is Recommended Service in 8 bar [kN] Frequency for Height Recommended Service at 8 bar [kN]
RZ 330-22 165 260 285 215 29.7 29.7 20.7 290 29.7 1.5
RZ 640-26 180 360 385 280 55 55 39.9 350 54.2 1.2
